Android圖形圖像Drawable的使用(二) 時間:2018-09-27      來源:未知

在本文中,程序統一使用的原圖為image.jpg,如圖 1。

圖 1

(1) BitmapDrawable

首先是MainActivity的布局文件activity_main.xml。

本文引用地址://www.bsfkj.cn/emb/Column/7551.html

<LinearLayout xmlns:android="//schemas.android.com/apk/res/android"

xmlns:tools="//schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="horizontal"

tools:context="com.example.drawabletest.MainActivity" >

<TextView <>

android:id="@+id/text1"

android:layout_width="100dp"

android:layout_height="100dp"

android:layout_margin="2dp"

android:background="@drawable/bitmap_drawable_repeat" />

<TextView <>

android:id="@+id/text2"

android:layout_width="100dp"

android:layout_height="100dp"

android:layout_margin="2dp"

android:background="@drawable/bitmap_drawable_mirror" />

<TextView <>

android:id="@+id/text3"

android:layout_width="100dp"

android:layout_height="100dp"

android:layout_margin="2dp"

android:background="@drawable/bitmap_drawable_clamp" />

</LinearLayout>

上面三個TextView分別使用了不同的BitmapDrawable的tileMode,下面分別貼出這三個Drawable的xml文件。

bitmap_drawable_repeat.xml:

<?xml version="1.0" encoding="utf-8"?>

<bitmap xmlns:android="//schemas.android.com/apk/res/android"

android:src="@drawable/image"

android:tileMode="repeat" />

bitmap_drawable_mirror.xml:

<?xml version="1.0" encoding="utf-8"?>

<bitmap xmlns:android="//schemas.android.com/apk/res/android"

android:src="@drawable/image"

android:tileMode="mirror" />

bitmap_drawable_clamp.xml:

<?xml version="1.0" encoding="utf-8"?>

<bitmap xmlns:android="//schemas.android.com/apk/res/android"

android:src="@drawable/image"

android:tileMode="clamp" />

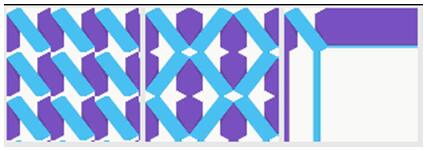

顯示效果如圖 2。

圖 2

(2) ShapeDrawable

首先是MainActivity的布局文件activity_main.xml。

<LinearLayout xmlns:android="//schemas.android.com/apk/res/android"

xmlns:tools="//schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="horizontal"

tools:context="com.example.drawabletest.MainActivity" >

<TextView <>

android:id="@+id/text1"

android:layout_width="100dp"

android:layout_height="100dp"

android:layout_margin="2dp"

android:background="@drawable/shape_drawable_gradient_linear" />

<TextView <>

android:id="@+id/text2"

android:layout_width="100dp"

android:layout_height="100dp"

android:layout_margin="2dp"

android:background="@drawable/shape_drawable_gradient_radius" />

<TextView <>

android:id="@+id/text3"

android:layout_width="100dp"

android:layout_height="100dp"

android:layout_margin="2dp"

android:background="@drawable/shape_drawable_gradient_sweep" />

</LinearLayout>

上面三個TextView分別使用了不同的ShapeDrawable的type,下面分別貼出這三個Drawable的xml文件。

shape_drawable_gradient_linear.xml:

<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="//schemas.android.com/apk/res/android"

android:shape="rectangle" >

<gradient <>

android:angle="45"

android:centerColor="#00ff00"

android:centerX="0.5"

android:centerY="0.5"

android:endColor="#0000ff"

android:startColor="#ff0000"

android:type="linear" />

</shape>

shape_drawable_gradient_radius.xml:

<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="//schemas.android.com/apk/res/android"

android:shape="rectangle" >

<gradient <>

android:centerColor="#00ff00"

android:endColor="#0000ff"

android:gradientRadius="50"

android:startColor="#ff0000"

android:type="radial" />

</shape>

shape_drawable_gradient_sweep.xml:

<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="//schemas.android.com/apk/res/android"

android:shape="rectangle" >

<gradient <>

android:centerColor="#00ff00"

android:endColor="#0000ff"

android:gradientRadius="50"

android:startColor="#ff0000"

android:type="radial" />

</shape>

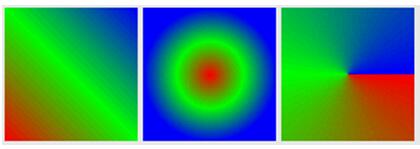

顯示效果如圖 3。

圖 3

(3) LayerDrawable

直接貼出layer_drawable.xml代碼,作為TextView的background。

<item>

<shape android:shape="rectangle" >

<solid android:color="#ff0000" />

</shape>

</item>

<item android:bottom="20dp">

<shape android:shape="rectangle" >

<solid android:color="#00ff00" />

</shape>

</item>

<item

<>

android:bottom="10dp"

android:left="10dp"

android:right="10dp">

<?xml version="1.0" encoding="utf-8"?>

<layer-list xmlns:android="//schemas.android.com/apk/res/android" >

<shape android:shape="rectangle" >

<solid android:color="#0000ff" />

</shape>

</item>

</layer-list>

顯示效果如圖 4。

圖 4

(4) StateListDrawable

直接貼出statelist_drawable.xml代碼,作為TextView的background。

<?xml version="1.0" encoding="utf-8"?>

<selector xmlns:android="//schemas.android.com/apk/res/android" >

<item

android:drawable="@drawable/button_pressed"

android:state_pressed="true"/>

<!-- 按下TextView時顯示此狀態 -->

<item <>

android:drawable="@drawable/button_focused"

android:state_focused="true"/>

<!-- 沒有按下TextView且獲得焦點時顯示此狀態 -->

<item android:drawable="@drawable/button_normal"/>

<!-- TextView默認狀態 -->

</selector>

(5) LevelListDrawable

直接貼出levellist_drawable.xml代碼,作為TextView的background。

<?xml version="1.0" encoding="utf-8"?>

<level-list xmlns:android="//schemas.android.com/apk/res/android" >

<item <>

android:drawable="@drawable/low_level"

android:maxLevel="1000"

android:minLevel="0"/>

<!-- 當level為0~1000時,顯示此Drawable -->

<item <>

android:drawable="@drawable/high_level"

android:maxLevel="10000"

android:minLevel="1001"/>

 <!-- 當level為1001~10000時,顯示此Drawable -->

</level-list>

(6) InsetDrawable

直接貼出inset_drawable.xml代碼,作為TextView的background。

<?xml version="1.0" encoding="utf-8"?>

<inset xmlns:android="//schemas.android.com/apk/res/android"

android:insetBottom="15dp"

android:insetLeft="15dp"

android:insetRight="15dp"

android:insetTop="15dp" >

<shape android:shape="rectangle" >

<solid android:color="#00ff00" />

</shape>

</inset>

(7) ClipDrawable

直接貼出clip_drawable.xml代碼,作為ImageView的background。

<?xml version="1.0" encoding="utf-8"?>

<clip xmlns:android="//schemas.android.com/apk/res/android"

android:clipOrientation="vertical"

android:drawable="@drawable/image"

android:gravity="bottom" />

ImageView的布局為:

<ImageView

android:id="@+id/img1"

android:layout_width="100dp"

android:layout_height="100dp"

android:gravity="center"

android:src="@drawable/clip_drawable" />

MainActivity.java代碼中:

ImageView mImageView = (ImageView) findViewById(R.id.img1);

ClipDrawable clipDrawable = (ClipDrawable)mImageView.getDrawable();

clipDrawable.setLevel(5000);
